I had this idea of building a portable smart projector which resembles a flashlight based on one of my previous projects.This device could possibly be used for retail settings, giving people a unique way to interact with static content as opposed to viewing it from screens which can be bulky and expensive to setup. This experience could also make way for interactive games and other kind of explorative projects.

Software

It is built inside openFrameworks (C++ framework). It took a bit of time to make and link the open-source libraries together (big shot-out to jvcleave for wrapping OMX into OF). It uses the RaspberryPi camera to detect markers (also known as fiducial markers) and play content (videos/gifs/images). The markers themselves can be quite small if the camera is fitted with the right lens and is positioned well with respect to the projector. Markers are a good start to have a dynamic animated projection since their design can be altered to represent a word/phrase making it unique to the person interacting with it. Having him/her interact with any static content makes the experience immersive and present information in a cool way.

Considering the libraries only work for a certain version of PI and OF, I’ve tried to put up detailed instructions of using this here.

Hardware

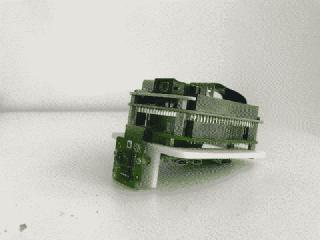

The first alpha prototype embodies a 320x240 LCD projector, RPI 3B+ and camera. I chose the RPI because it has a GPU dedicated for the camera and video player, making it very power efficient and potentially making it possible to have a battery embedded in later versions. It includes a 3D printed case with a button and a handle for ease of use.

Working

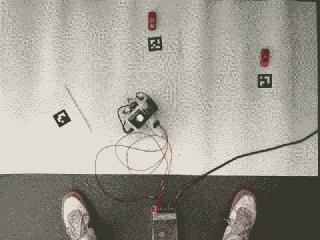

The projector can detect fiducial markers within a 1-1.5m range only in a relatively bright setting. (if the environment becomes too dark, then the content also needs to light up the fiducial to let the camera see it. This can be adjusted and is not a big problem).

Revisions for next Iteration

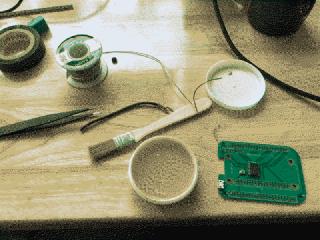

New RPI Zero 2W in a much smaller package compared to its predecessor combined with a DLP projector which sits as a hat on the PI zero. I made a custom PCB for the hat which would make this a tiny package altogether, also giving enough room to fit in a LIPO battery and making it a portable smart flashlight device. This hat relies much on the project done by MichMakes. Much credit to his work :D

As a next step, I will upload the files for the PCB Hat and all the required components to replicate it.
